Product Introduction

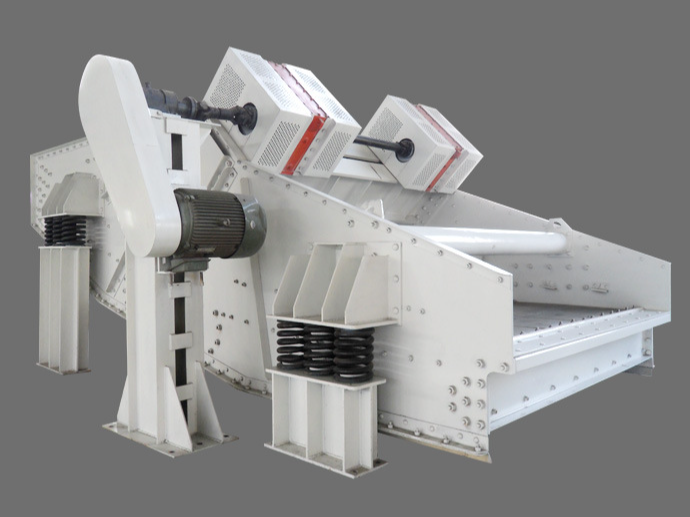

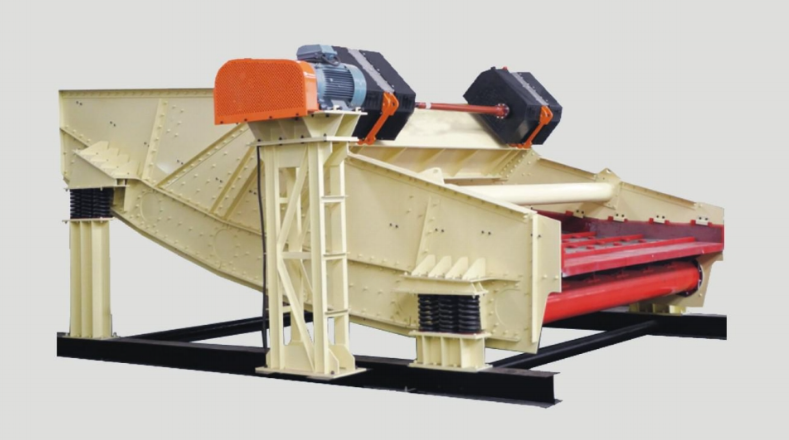

Banana sieve shape is special, can be used for fine grain (particle diameter is less than half of the size of the sieve) content is more large, medium grade material classification, can also be used in dehydration, desliming, desliming and other operations.
Performance Parameter
| Model | Equipment Name | Technical Parameters | |
|---|---|---|---|
| GNBS3661 | Large Banana Screen | Model Code | GNBS3661 |
| Screen Size | 3600mm × 6100mm (21.96 m²) | ||
| Inclination | 5-25° | ||
| Screen Panel Type | Polyurethane Panels | ||
| Mounting Method | Snap-on, Modular Layout | ||
| Vibration Exciter | Box Exciter | ||
| Lubrication | Oil Lubrication | ||
| Bearings | FAG Imported Bearings | ||
| Double Amplitude | 8-12mm | ||
| Damping Device | Steel Springs | ||
| Corrosion & Wear Protection | Polyurea Spraying or Rubber Lining | ||
| Connection Method | Imported HUCK Rivets | ||
| Motor Parameters | 1 × Motor (30kW, 380V, 50Hz) | ||
| Cross & Vibrating Beams | Stress Relief Annealing | ||
| Mesh Size | 0.8mm | ||
| Model | Max Feed Size (mm) | Mesh Size (mm) | Effective Area (m²) | Power (kW) | Amplitude (mm) | Weight (t) |
|---|---|---|---|---|---|---|
| ZX-1836 | ≤300 | 0.2-50 | 6.48 | 12 | 8-10 | 6 |
| ZX-1848 | 6.84 | 18.5 | 8-10 | 7.8 | ||
| ZX-2448 | 11.52 | 22 | 8-12 | 10 | ||
| ZX-2461 | 14.64 | 22 | 8-12 | 11.5 | ||
| ZX-3061 | 18.3 | 37 | 8-12 | 13 | ||
| 2ZX-3061 | 18.3×2 | 45 | 8-12 | 17 | ||
| ZX-3073 | 21.9 | 45 | 8-12 | 15 | ||
| 2ZX-3073 | 21.9×2 | 55 | 8-12 | 18 | ||
| ZX-3661 | 22 | 45 | 8-12 | 17 | ||
| 2ZX-3661 | 22×2 | 55 | 8-12 | 18 | ||
| ZX-3673 | 26.28 | 55 | 8-12 | 20 | ||
| 2ZX-3673 | 26.28×2 | 72 | 8-12 | 24 | ||
| ZX-4373 | 31.4 | 75 | 8-12 | 28 |
