Product Introduction

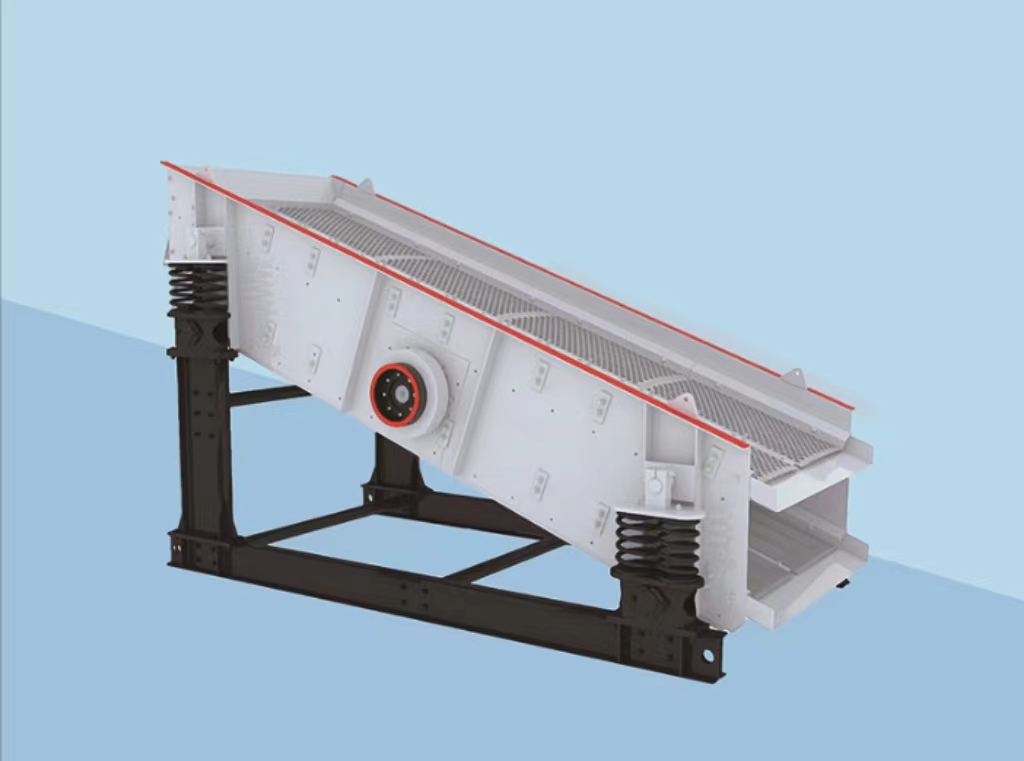

Circular vibrating screen is a new type of vibrating screen with circular vibration, multiple layers and high efficiency. The cylindrical vibrating screen adopts cylindrical eccentric shaft exciter and offset block to adjust the amplitude, the material sieve flow line is long, the screening specifications are many, with reliable structure, strong exciting force, high screening efficiency, low vibration noise, durable, easy maintenance, safe use and other characteristics, the vibrating screen is widely used in mining, building materials, transportation, energy, chemical and other industries of product classification.
Performance Parameter
| Model | Decks | Mesh Size (mm) | Max Feed Size (mm) | Capacity (m³/h) | Power (kW) | Inclination (°) | Weight (kg) | Dimensions (L×W×H mm) |
|---|---|---|---|---|---|---|---|---|
| 2YK1225 | 2 | 4-50 | 400 | 8-60 | 5.5 | 20 | 3500 | 2930×1860×870 |
| 3YK1225 | 3 | 4-50 | 400 | 10-70 | 5.5 | 20 | 3850 | 3070×1860×1210 |
| 2YK1230 | 2 | 4-50 | 400 | 12-78 | 7.5 | 20 | 4200 | 3430×1860×870 |
| 3YK1230 | 3 | 4-50 | 400 | 13-80 | 7.5 | 20 | 4600 | 3570×1860×1210 |
| 2YK1237 | 2 | 4-50 | 400 | 15-86 | 7.5 | 20 | 4600 | 4050×1860×870 |
| 3YK1237 | 3 | 4-50 | 400 | 16-90 | 7.5 | 20 | 5200 | 4270×1860×870 |
| 2YK1535 | 2 | 5-50 | 400 | 20-125 | 11 | 20 | 5890 | 4120×2210×1230 |
| 3YK1535 | 3 | 5-50 | 400 | 21-125 | 11 | 20 | 6700 | 4360×2210×1610 |
| 2YK1545 | 2 | 5-50 | 400 | 22-150 | 15 | 20 | 6330 | 5120×2210×1230 |
| 3YK1545 | 3 | 5-50 | 400 | 22-150 | 15 | 20 | 6800 | 5360×2210×1610 |
| 4YK1545 | 4 | 5-50 | 400 | 22-155 | 18.5 | 20 | 7800 | 5930×2210×2060 |
| 2YK1548 | 2 | 5-50 | 400 | 22.5-162 | 15 | 20 | 6980 | 5420×2210×1230 |
| 3YK1548 | 3 | 5-50 | 400 | 22.5-162 | 15 | 20 | 7700 | 5660×2210×1610 |
| 4YK1548 | 4 | 5-50 | 400 | 22.5-162 | 18.5 | 20 | 8700 | 6230×2210×2060 |
| 2YK1848 | 2 | 5-80 | 400 | 25-206 | 15 | 20 | 9080 | 5420×2550×1420 |
| 3YK1848 | 3 | 5-80 | 400 | 32-276 | 18.5 | 20 | 9600 | 5660×2550×1780 |
| 4YK1848 | 4 | 5-80 | 400 | 32-285 | 22 | 20 | 11100 | 6290×2550×2160 |
