Features: mesh is not easy to plug, screening cylinder can be closed, easy to close dust collection, long service life.
Applicable materials: refractory, river sand, sand, coal, coke, white ash, gold ore, hematite, limonite, etc

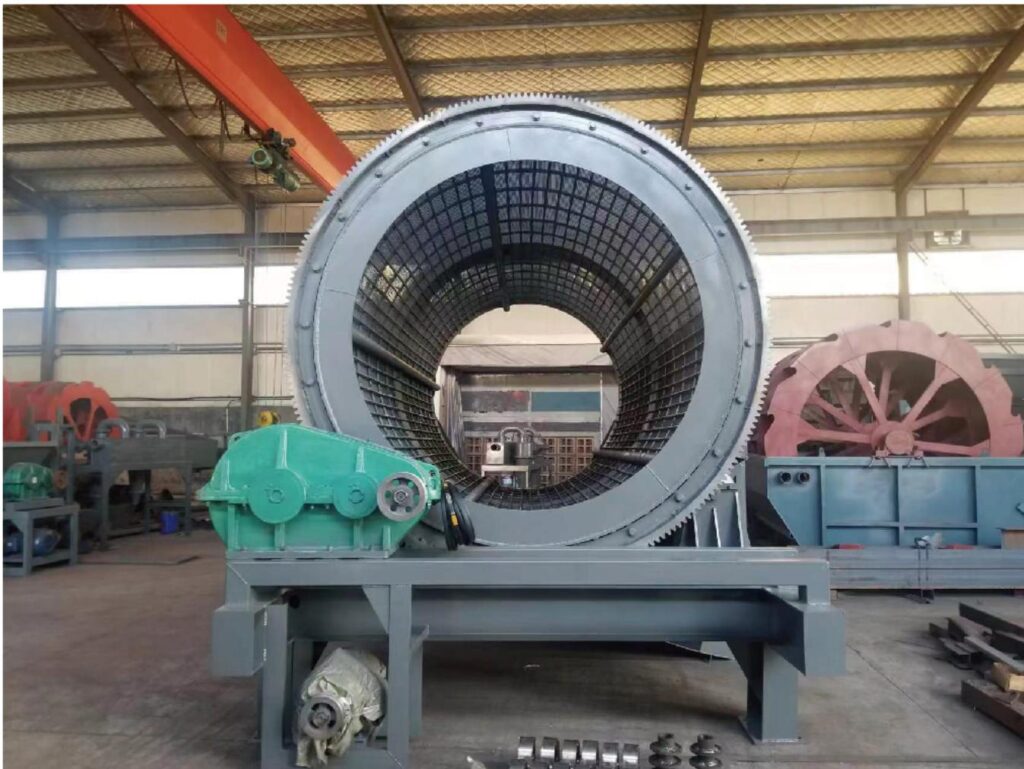

The roller screen is also called the roller screen sand machine, the roller screen machine, its main part is the screening cylinder, there are a number of circular sand king, the speed reduction system makes the screening cylinder rotate at a certain speed, the material is separated from the top through the screening cylinder, the fine material is discharged from the lower end of the screening cylinder, the coarse material is discharged from the bottom end of the screening cylinder, in order to complete the grading of the material.
Performance Parameter
| Model | Capacity | Power | Drum Diameter | Drum Length | Max Feed Size | Output Size | Dimensions |
|---|---|---|---|---|---|---|---|
| (t/h) | (kW) | (mm) | (mm) | (mm) | (mm) | (L×W×H mm) | |
| GTS1015 | 50 | 3 | 1000 | 1500 | ≤300 | 0~100 | 2600×1400×1700 |
| GTS1020 | 100 | 4 | 1000 | 2000 | 3390×1400×2140 | ||
| GTS1225 | 160 | 5.5 | 1200 | 2500 | 4146×1600×2680 | ||
| GTS1530 | 250 | 7.5 | 1500 | 3000 | 4460×1900×2820 | ||
| GTS1545 | 350 | 11 | 1500 | 4500 | ≤400 | 5960×1900×3080 | |
| GTS1848 | 450 | 15 | 1800 | 4800 | 6500×2350×4000 | ||
| GTS2055 | 600 | 22 | 2000 | 5500 | 7500×2550×4800 | ||
| GTS2265 | 800 | 30 | 2200 | 6500 | 8500×2750×5000 |
