Product Introduction
Product Introduction

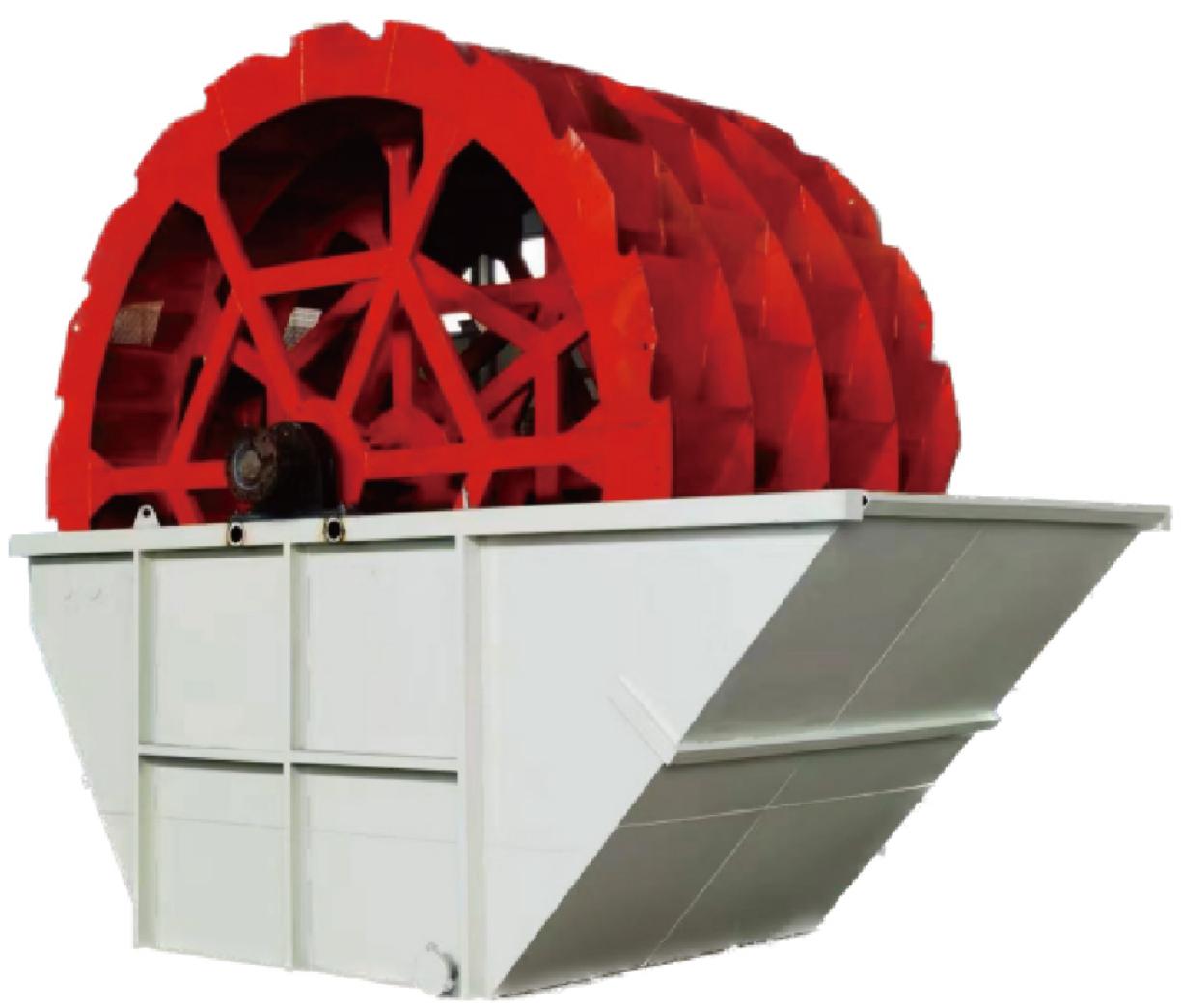

Wheeled sand washing machine, also called wheeled bucket sand washing machine or wheeled bucket sand washing machine, is a washing equipment for artificial sand (including natural sand). It can remove impurities covering the surface of sand and stone, and destroy the water vapor layer covering the sand particles, so as to facilitate dehydration and play an efficient role in sand washing and cleaning. Sand washing machine is widely used in sand and gravel field, mining, building materials, transportation, chemical industry, water conservancy and hydropower, concrete mixing station and other industries to wash materials. The impeller is mainly driven by the motor to rotate slowly, the material is rubbed under the rotation of the impeller, and then the residue on the surface of the material is removed, and the water vapor layer covered in the sand is destroyed, so as to facilitate drying, and then the water is released to produce a strong amount of water, and the residue and small dirt are taken to complete the cleaning work.
Performance Parameter
| Model | XS2600 | XS2600II | XS2800 | XS3000 | XS3200 | XS3600 |
|---|---|---|---|---|---|---|
| Wheel Bucket Diameter (mm) | 2600 | 2600 | 2800 | 3000 | 3200 | 3600 |
| Rotation Speed (r/min) | 2.5 | 2.5 | 1.2 | 1.2 | 1 | 1 |
| Max Feed Size (mm) | ≤10 | ≤10 | ≤10 | ≤10 | ≤10 | ≤10 |
| Capacity (t/h) | 20-50 | 30-70 | 50-100 | 65-110 | 80-120 | 120-180 |
| Motor Power (kW) | 5.5 | 5.5 | 7.5 | 7.5 | 11 | 15 |
| Dimensions (L×W×H mm) | 3515×2070×2672 | 3515×2270×2672 | 3900×3300×2990 | 4065×3153×3190 | 3965×4440×3410 | 4355×4505×3810 |
